Retrofire Series  |  Insert Fireplace

Models: RF24IDN/P & RF24XBN/P


Now there's a quick and easy way to turn your existing fireplace into an energy efficient heat source. Engineered to keep the heat inside your home (and not up the chimney), the Retrofire insert is designed for installation within existing masonry and factory-built wood burning fireplaces.

Nestled within your existing fireplace opening, the Retrofire installs clean and does not require a front or trim for operation.

Standard Safety Screen ValorStat Plus Remote Insert Approved

Specifications

Model Max Input Min Input Max Output Energuide
RF24XBN 20,500 12,500 16,169 54.20%
RF24XBP 19,000 12,500 16,169 54.20%
RF24IDN 24,000 6,500 16,224 61.50%
RF24IDP 24,000 6,500 16,224 61.50%

Gas Type Natural Gas (NG) or Propane (LPG)
Viewing Area 21 ½" w x 11 ¾" h = 252 ⅝"²
Min. Cavity Dimensions 29" w x 14" h x 18" d
Remote Control ValorStat Plus Remote (GV60)
Optional Wall Control Wall Switch Kit (1265WSK)

Installation Examples

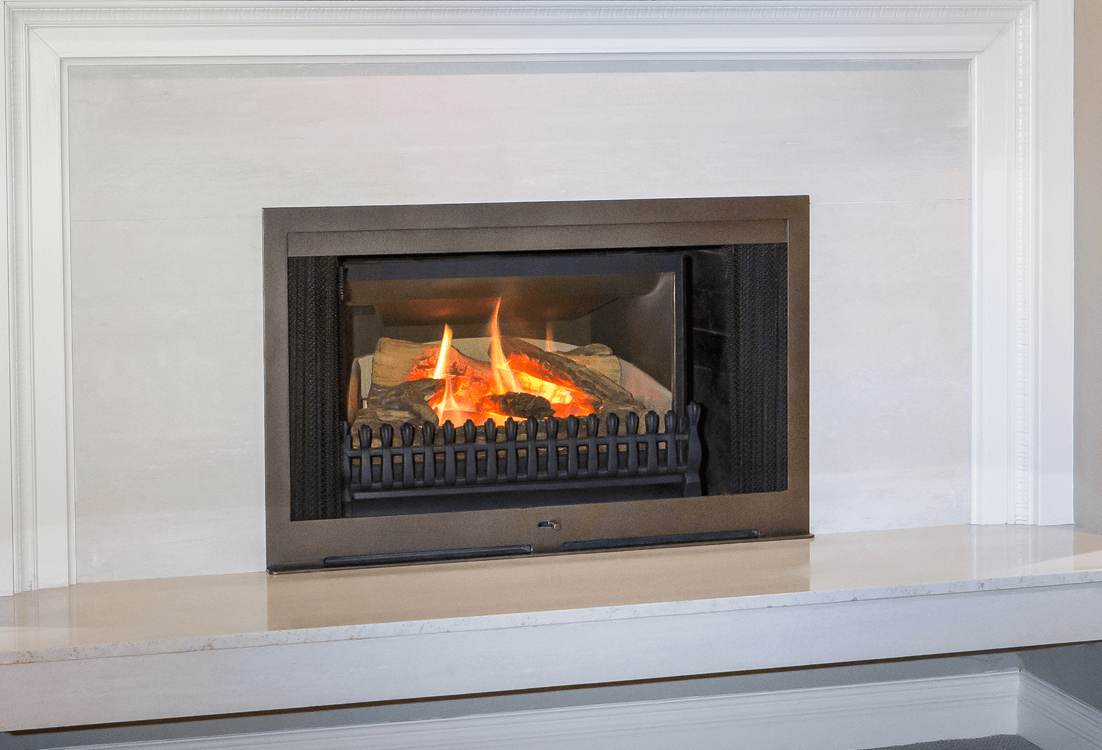

Retrofire Insert Series

Logs & Traditional Fret

Retrofire Insert Series

Logs & No Fret

Retrofire Insert Series

Logs & Ventana Fret




Components

Engine

RF24IDN/P Direct Vent Insert Engine
RF24XBN/P B-Vent Insert Engine

Fuel Beds

RF24 Engine & Logs

Watch Now


Optional Frets

RA24FK Fret Bracket Kit (required for Frets)
1225VFB Ventana Fret - Black
RA24AV Avante-Garde Fret - Vintage Iron
RA24CV Contemporary Fret - Vintage Iron
RA24TB Traditional Fret - Black

Optional Accessories

555CFK Circulating Fan Kit
559CLT Co-Linear Terminal
559SFK Square Flashing Kit (for use with 559CLT)
GV60BRK 1-Hour Shut Down Handset (RF24I engine only)
GV60NTK Non-Thermostat Handset (RF24I engine only)
RBWSK Remote Battery & Wall Swith Kit (RF24I engine only)

For a complete listing of Retrofire components please visit the Owner's Manual section.


CAD Files

For information on Valor CAD files, please click here or visit our CADdetails.com profile.


Fireplace Safety

Included with your purchase, a Valor Barrier Screen is recommended at all times. Close adult supervision is required if there are young children, or at-risk individuals in the house. Learn more.
